Guideline for Specifying Steel Doors and Frames
for Blast Resistance

SDI 133-16

Table of Contents
1
Introduction
2
Definitions
3
Blast Standard Test Methods and Design Criteria


1 Introduction

Blast-resistant hardening, or the structural strengthening of buildings, is one measure an owner may employ to minimize the risk to people and equipment from the hazards of accidental or intentional explosions. Many architects are finding it necessary to include blast-resistant products in new and existing construction. These products do not fall under any building code, but are required by a number of government agencies such as the Department of Defense, Veterans Affairs, Department of State, and the General Services Administration. They are backed by analysis or 3rd party test data (from an accredited lab) to show their performance level under blast load conditions. This document will serve as a guide to identify the proper criteria, and to give brief explanations of each criterion. Additional requirements, fire rating, swing, etc. are not covered.

2 Definitions

2.1 Blast Resistant Product: Assembly comprised of a door (or pair of doors) and a frame with hardware, or a glazing system that is rated to resist a specified blast peak pressure and impulse to a required performance level. Higher level doors and frames are typically sold and shipped as one unit in order to be certified by the manufacturer that it will meet the projected blast and performance requirements.

2.2 Blast Pressure: The maximum pressure to be exerted on the assembly by the blast event.

2.3 Positive Phase Impulse: The area under the curve formed by the integral of blast pressure (Pmax) vs. time (Td).

 Blast Ideal

2.4 Charge Weight: The equivalent explosive weight (lbs. or kg) of TNT in the blast event. Different agencies have specific requirements for charge weight to be used. See agency specific criteria for DoD, VA, GSA, and DOS to determine required charge weight and in some cases, the required standoff distance.

2.5 Duration: The amount of time it takes the peak pressure to decay to ambient conditions (or zero).

2.6 Rebound: Load acting in the opposite direction of the initial blast load that may be a result of negative phase pressure loading and system response, and is typically expressed as a percentage of the initial peak blast pressure.

2.7 Stand-off Distance: The distance from the centroid of the explosive device to the specified opening or structure.

2.8 Seated/Unseated: The orientation of the door in the frame, in relation to the blast origin.

Blast

2.9 Blast Product Response & Damage Category (Also referred to as Level of Protection in the UFC): The amount of structural damage (permanent deformation) present after the blast event. With respect to a door and frame unit, the operability of the door, and whether or not the door and/or frame become detached and present a debris hazard. With respect to a glazing system, whether or not the glazing fractures, and if it presents a flying debris hazard. There are multiple standard test methods written that outline test procedures to follow to show how a blast-resistant unit will react in a blast event.

2.9.1 Paraphrased response and damage categories are given on page 2 to highlight the differences in test methods and design criteria. For the full verbiage, please reference the specified test methods and standards organization.

Blast Product Response & Damage Categories

UFC 4-010-01 – Levels of Protection
Below AT Standards Severe damage and/or collapse of structure
Very Low Heavy structural damage
Low Moderate damage, unable to be repaired economically
Medium Minor damage, able to be repaired economically
High Minimal damage, no permanent deformation
ASTM F2247-11 – Response Categories
Category I No permanent deformation to the specimen is present, and the door is fully operable.
Category II Measurable permanent deformation is present, but the door is operable.
Category III Non-catastrophic failure, however the unit is inoperable.
Category IV The unit is severely deformed; however the door will not become a flying debris hazard.
ASTM F2912-11 – Hazard Ratings
No Break (H1) No fractures are present in the glazing, and no damage is visible to the unit.
No Hazard (H1) The glazing has fractured, but no breakage has occurred (no debris).
Minimal Hazard (H2) The glazing has fractured, and minimal fragments are present on the floor near the interior face of the glazing system (between 0 and 40 inches).
Very Low Hazard (H3) The glazing has fractured and noticeable fragments are present on the floor near the interior face of the glazing system (between 40 and 120 inches).
Low Hazard (H4) The glazing has fractured and fragments have fallen up to 120 inches away from the interior face of the glazing system, but lower than 20 inches above the floor.
High Hazard The glazing has fractured and fragments have fallen up to 120 inches away from the interior face of the glazing system, and higher than 20 inches above the floor.
ASTM F2927-12 – Door Response Damage Categories
Category I The door specimen is unchanged and fully operable.
Category II The unit has acceptable permanent deformation but it still operable.
Category III The unit has permanent deformation that may cause it to be lodged in the frame, or to swing open in rebound. The door and frame stay together as one unit.
Category IV The door can become separated from the frame and cause a flying debris hazard, or the door and frame unit may separate from the wall and cause a debris hazard. The flying debris will not go further than 3 meters.
Category V The door or the door and frame unit together become dislodged and cause a flying debris hazard that will go further than 3 meters.

3 Blast Standard Test Methods and Design Criteria

3.1 ASTM F2247Standard Test Method for Metal Doors Used in Blast Resistant Applications (Equivalent Static Load Method) – Determines ultimate static capacity. Requires further evaluation to relate to explosive charges or other dynamic loads

3.2 ASTM F2927Standard Test Method for Door Systems Subject to Airblast Loadings – Used to determine blast capacity for a shock wave created by live explosives or a shock tube.

3.3 ASTM F2912Standard Specification for Glazing and Glazing Systems Subject to Airblast Loadings – Used to determine blast capacity from a shock wave or explosion

3.4 ASTM F1642Standard Test Method for Glazing and Glazing Systems Subject to Airblast Loadings – The data obtained from this test method is used in ASTM F2912 to determine a hazard rating.

3.5 GSA-TS01-2003Standard Test Method for Glazing and Window Systems Subject to Dynamic Overpressure Loadings – The sole test protocol by which blast resistant windows and related hazard mitigation technology and products shall be evaluated for facilities under the control and responsibility of the US General Services Administration.

3.6 ASCE 2010, 2nd editionDesign of Blast Resistant Buildings in Petrochemical and Offshore Facilitie

3.7 PIP STC01018Blast Resistant Building Design Criteria for Petrochemical and Offshore Facilities

3.8 UFC 4-010-01Department of Defense Minimum Antiterrorism Standards for Buildings – The intent is to minimize mass casualties in buildings or portions of buildings owned, leased, privatized, or otherwise occupied, managed, or controlled by or for DoD in the event of a terrorist attack.

Blast Requirements to be provided (Except DoD Projects) Sample Criteria (Door) Sample Criteria (Window)
Product Size (Scheduled Opening) 3´-0˝ x 7´-0˝ Door & Frame Assy 4´-0˝ x 4´-0˝ Window
Peak Pressure, Duration, & Rebound 4psi, 100ms, 50% Rebound 2psi, 200ms, 50% Rebound
Door Configuration (Seated/Unseated) Seated in Frame
Wall Conditions Welded to Steel Subframe Anchored to Wall
Category Response II Very Low Hazard (H3) per ASTM F2912-11
Applicable Blast Test Standard ASTM F2927-12 ASTM F1642-12
Glazing Requirements/Thickness No Vision Light Required TBD by Manufacturer
Blast Requirements to be provided (DoD Projects) Sample Criteria (Door)
Product Size 3´-0˝ x 7´-0˝
Charge Weight II
Stand-off Distance 250 ft
Level of Protection Medium
UFC Revision, Revision Date, and Change Date (If Applicable) UFC 4-010-01, 9 Feb 2012 Change 1, 1 Oct 2013

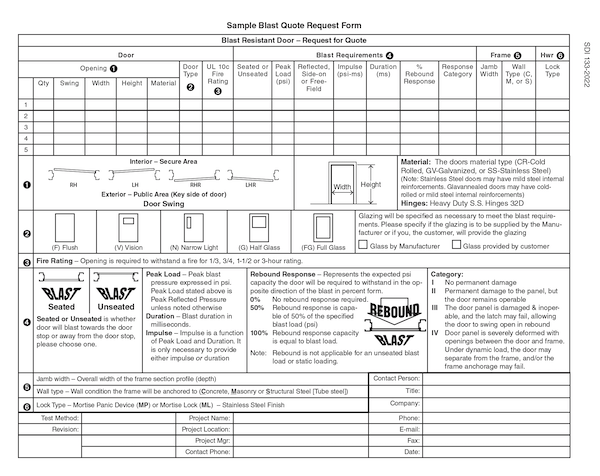

Sample Blast Quote
